Barred Tee

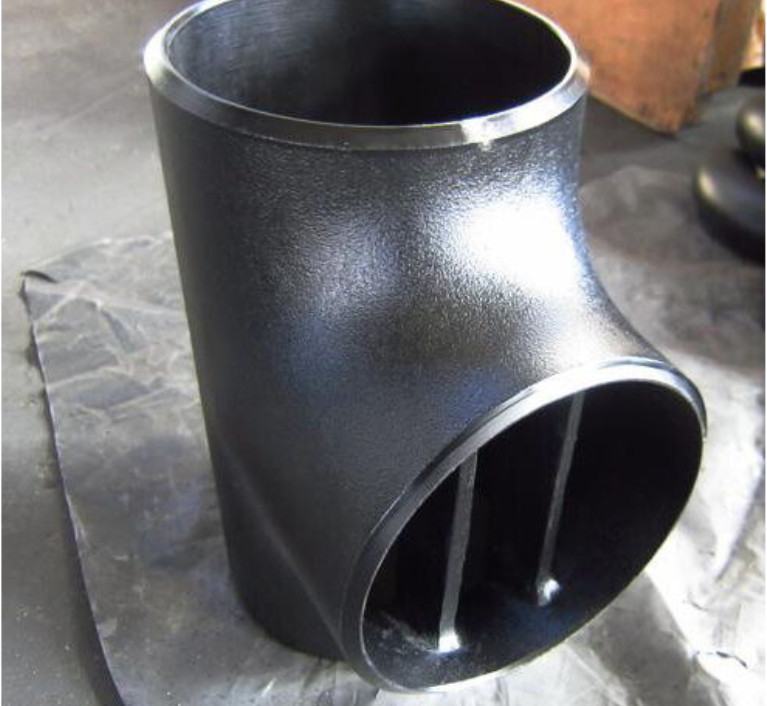

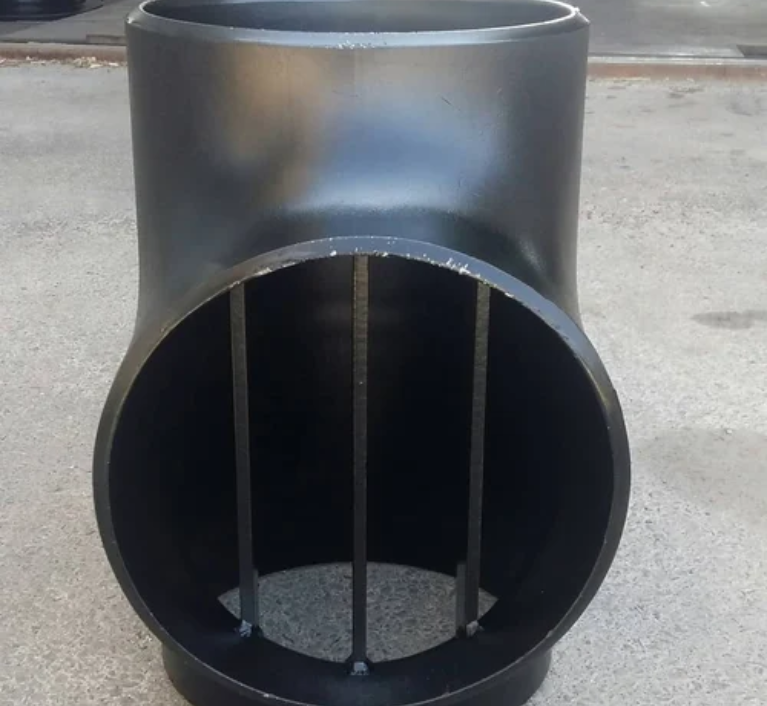

Barred Tee often called as Pigging Tee is also a pipe fitting that is used in a pig Launcher or receiver system to ensure that the pig passes the branch safely. Barred Tee can be either Equal or Reducing Tee which are added with bars at a later stage
Product Range
Barred Tee Sizing
| Size Range | Class/ Rating |
|---|---|
| Size 4" to 24" | #150 to #1500 CL. |
| Size 4" to 36" | #150 to #900 CL. |
| Size 4" to 42" | #150 to #600 CL. |
Barred Tee Service
| Service | Design Stardard & Design Factor |
|---|---|
| Hydro carbon, Oil & Gas and Water | ASME B31.4, B31.8 & 31.3 for Tee and Design Factor .4, .5, .6, .72 |
Barred Tee Material
| Material & dimension Standard | Dimension Stardard |
|---|---|
| MOC ASTM A234 GR. WPB, ASTM A860/MSS-SP-75 GR. WPHY 46, WPHY 46, WPHY 52, WPHY-56, WPHY 60, WPHY 65, WPHY 70 & WPHY 80 For Tee and ASTM A516 GR. 60/70 for Bar. | ASME B16.9, MSS SP 75, B16.25 for Tee and bars as per Internal or Client approved drawing. |
