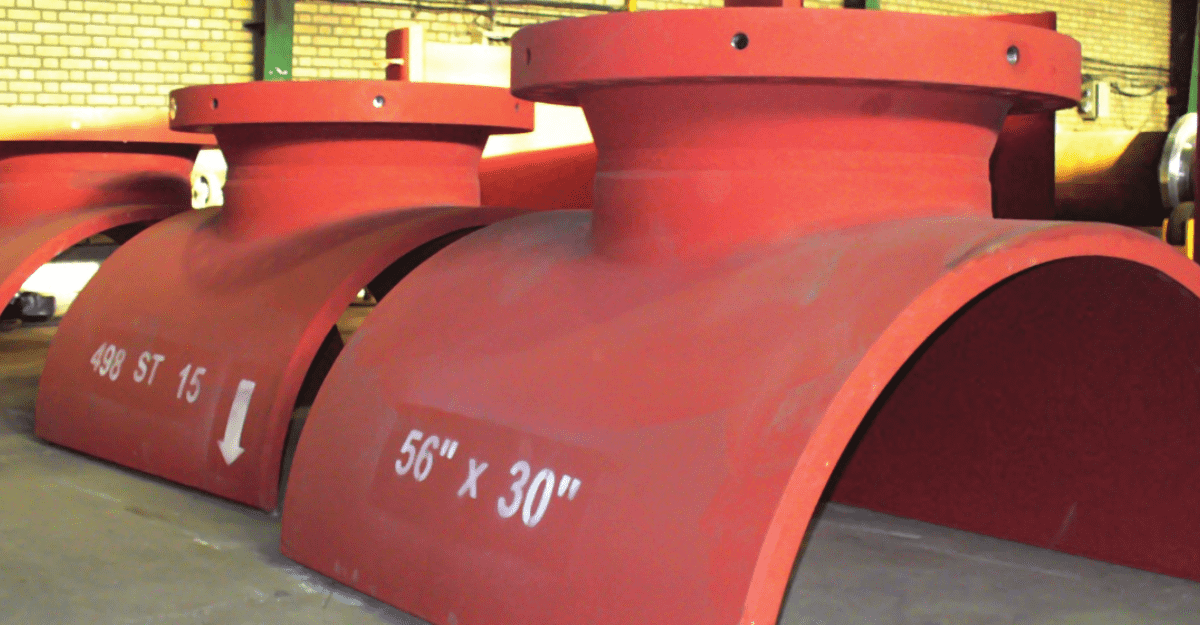

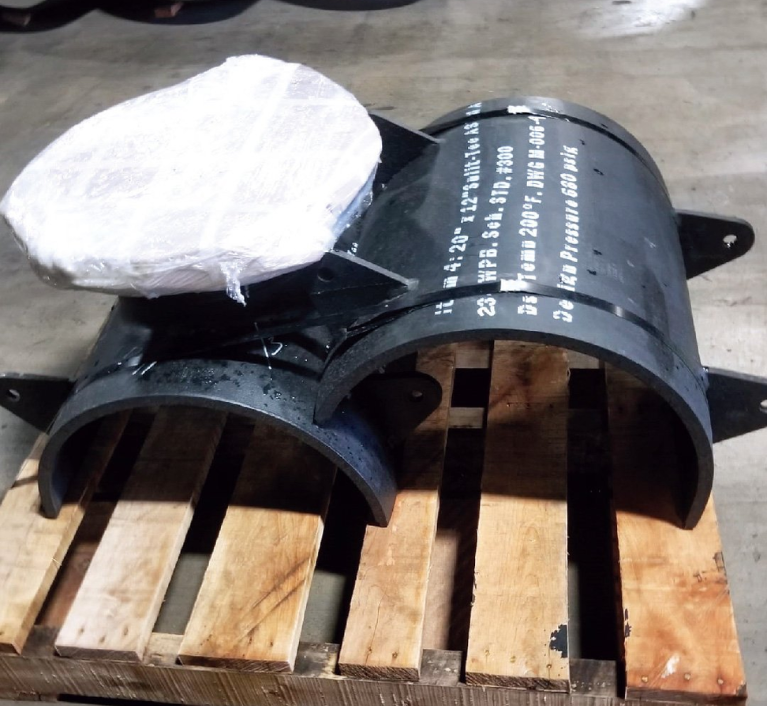

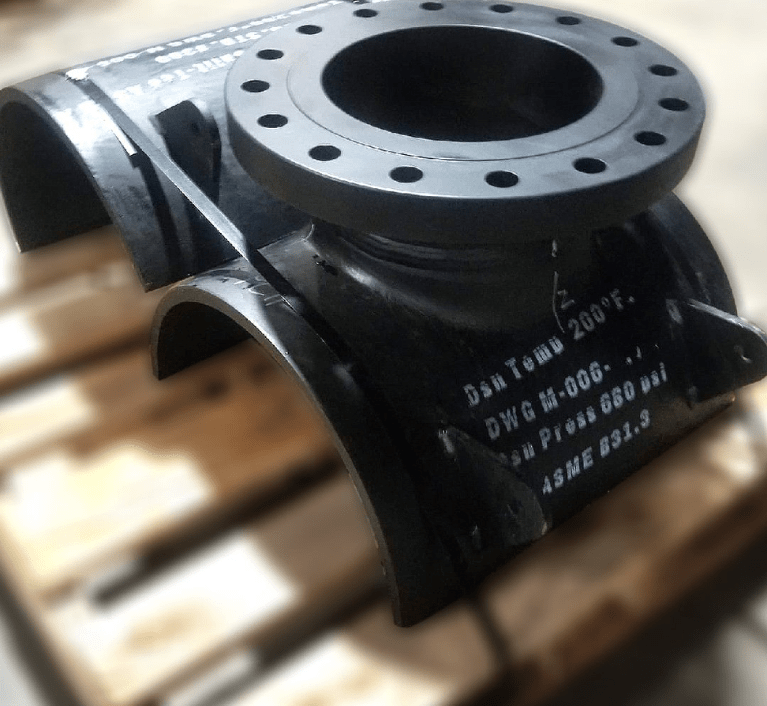

Split Tee
Split Tee is used during the process of hot tapping into the pipeline or for any kind of repair into a pipeline.
It is a full encirclement pipeline fitting designed in such a way that the inner diameter of the fitting is of the same size as the outside diameter of the pipe that will be hot tapped.
Product Range
Split Tee Sizing
| Size Range | Class/ Rating |
|---|---|
| Size 4" to 24" | #150 to #1500 CL. |
| Size 4" to 36" | #150 to #900 CL. |
| Size 4" to 42" | #150 to #600 CL. |
Split Tee Service
| Service | Design Stardard & Design Factor |
|---|---|
| Hydro carbon, Oil & Gas and Water | ASME B31.4, B31.8 & 31.3 for Tee and Design Factor .4, .5, .6, .72 |
Split Tee Material
| Material & dimension Standard | Dimension Stardard |
|---|---|
| MOC ASTM A234 GR. WPB, ASTM A860/MSS-SP-75 GR. WPHY 42/ 46/52/ 56/60/ 65/70 & WPHY 80 For Tee and ASTM A105 & A694 for Flange. | As per VIVIAL Standard or Client approved drawing. |
