Flanges
We supply the highest quality of Steel Flanges to meet the requirements of the piping Industry.

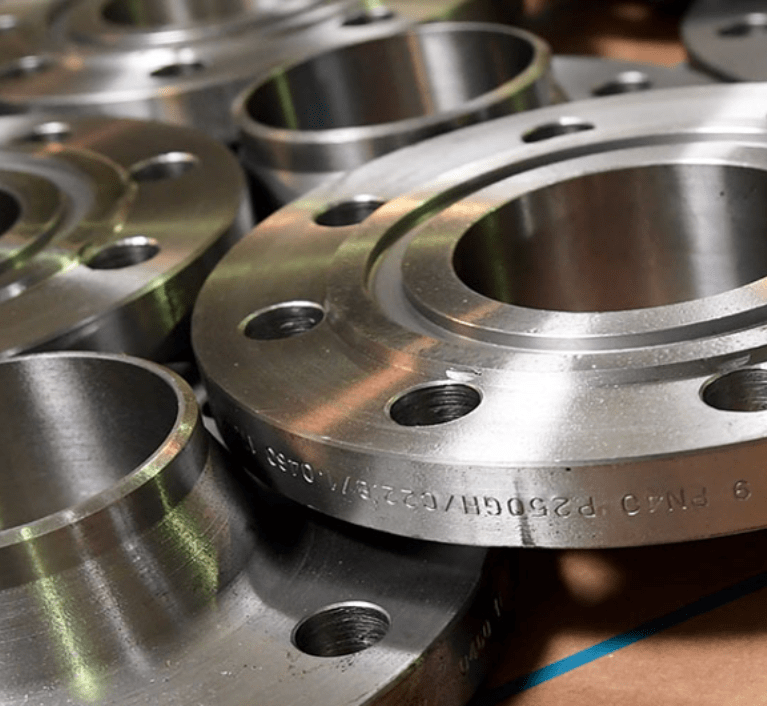

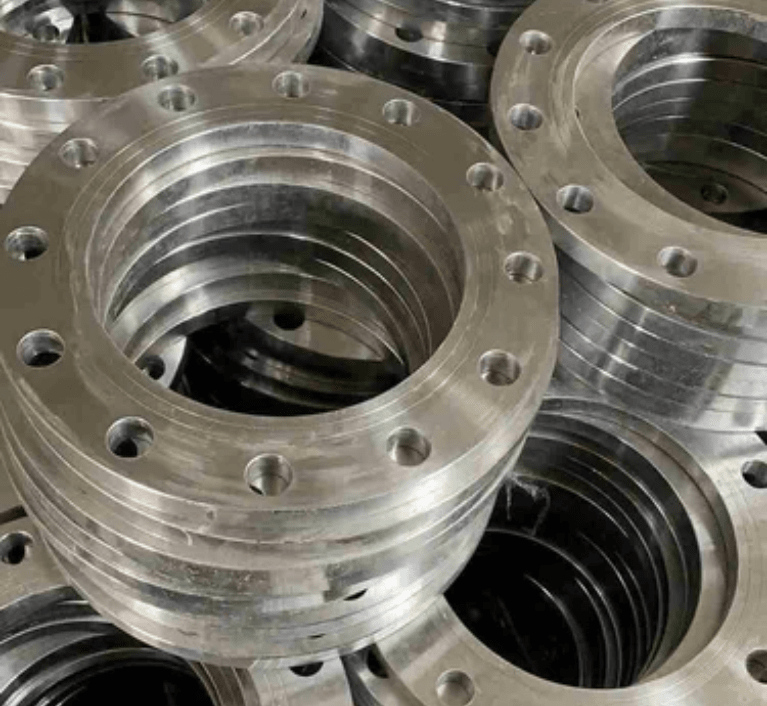

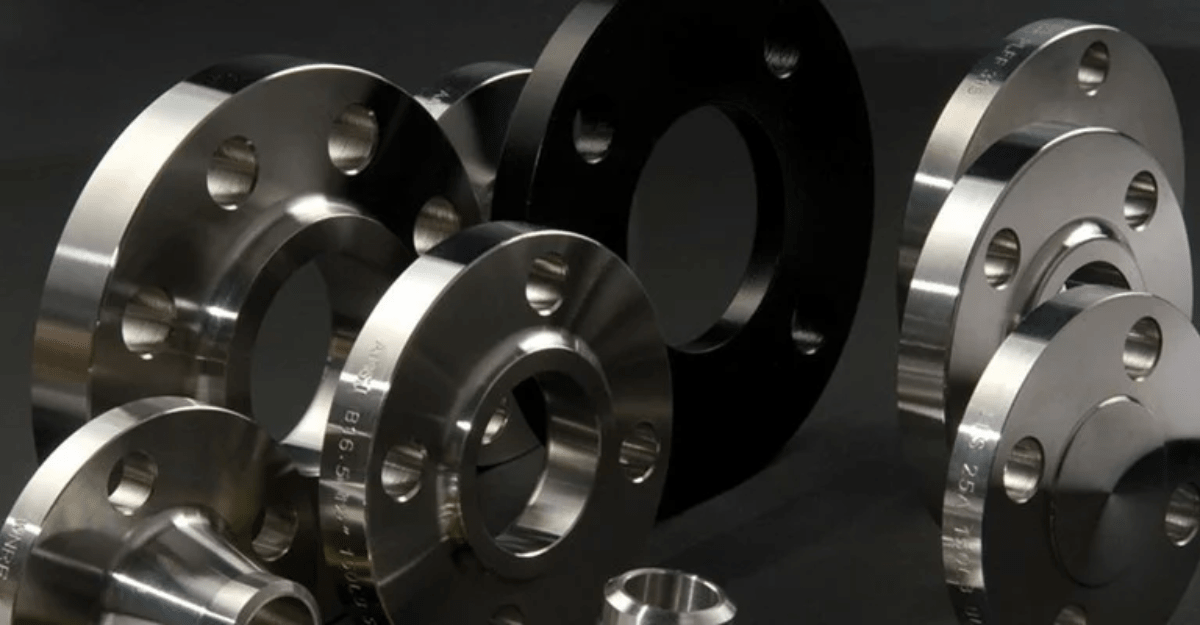

Our Steel Flanges are available in various formats such as Slip On, Blind, Weldneck, Socketweld, Threaded, Lap Joint, Orifice, Spectacle Blinds and Long Welded Neck. Carbon steel Flanges are available in sizes from 1/2" to 48" and are manufactured and quality controlled to meet ASME, ASTM, standards.
Slip On, Blind, Weldneck, Socketweld, Threaded, Lap Joint, Spectacle Blinds and Long Welded Neck.
Product Range
flanges
| SN | Type of Flange | Face Type | Size Range | Class / Rating |
|---|---|---|---|---|
| 1. Forged Flanges |
Weld Neck, Slip On, Socket Weld, Screwed, Blind, Lap Joint, Long Neck, Spectacle Blind, Spacer & Blank and Orifice | Raise Face, Flat Face, Ring Joint, Tongue and Groove | 1/2” to 12” 1/2” to 24” 1/2” to 48” 1/2” to 60” |
CLASS #150 to #2500 CLASS #150 to #1500 CLASS #150 to #900 CLASS #150 to #600 |
| 2. Plate Flanges |
Slip On, Screwed, Blind, Lap Joint, Spectacle Blind, Spacer & Blank | Raise Face and Flat Face | 1/2” to 88” | As per customer requirement and drawing |
Material & Grades
| Material | Manufacturing Standard and Grades |
|---|---|
| Stainless Steel | ASTM A182 GR. F304, F304L, F304H, F310, F316, F316L, F316H, F317L, F321, F321H, F347, F347H , F904 & NACE |
| Carbon Steel | ASTM A105 & A105N & A516 GR.60/70 & NACE |
| High Strength Carbon Steel | ASTM A694 Gr. F42, F46, F52, F56, F60, F65, F70, & F80 |
| Low Temperature Carbon Steel | ASTM A350 GR. LF2, LF3, LF6 |
| Alloy Steel | A182 F1, F5, F9, F11, F12, F22, F91 |
| Special Ferrous & Non-Ferrous | Duplex Steel, Nickel, Inconel, Monel & Hastelloy |
| Dimensions | ASME B16.5, B16.47 Series A /B, B16.48,MSS SP44, ASA, API-605, AWWA, BS 1560, BS 10 Table B/D/E/F/H, API 605, DIN & Custom Drawings |
