Butt Weld Pipe Fittings

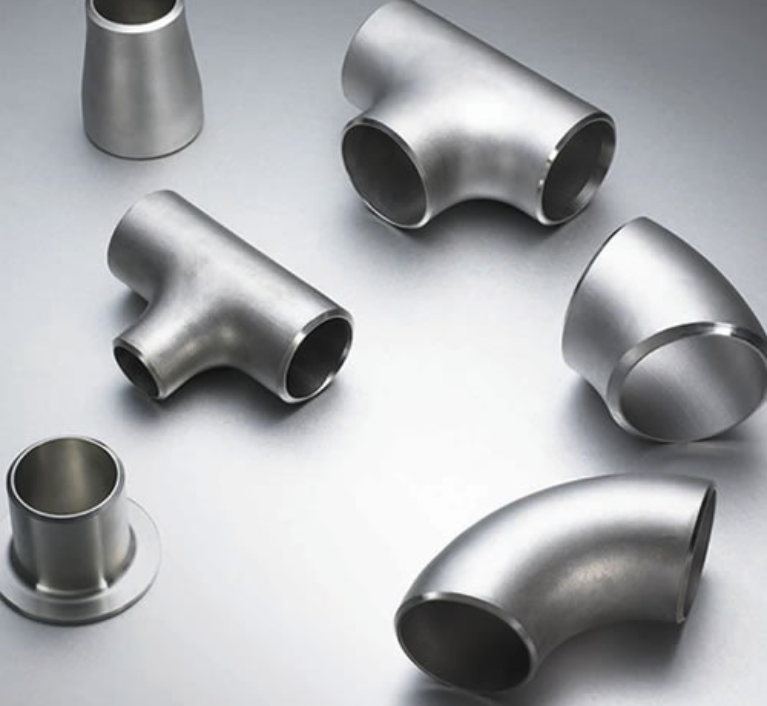

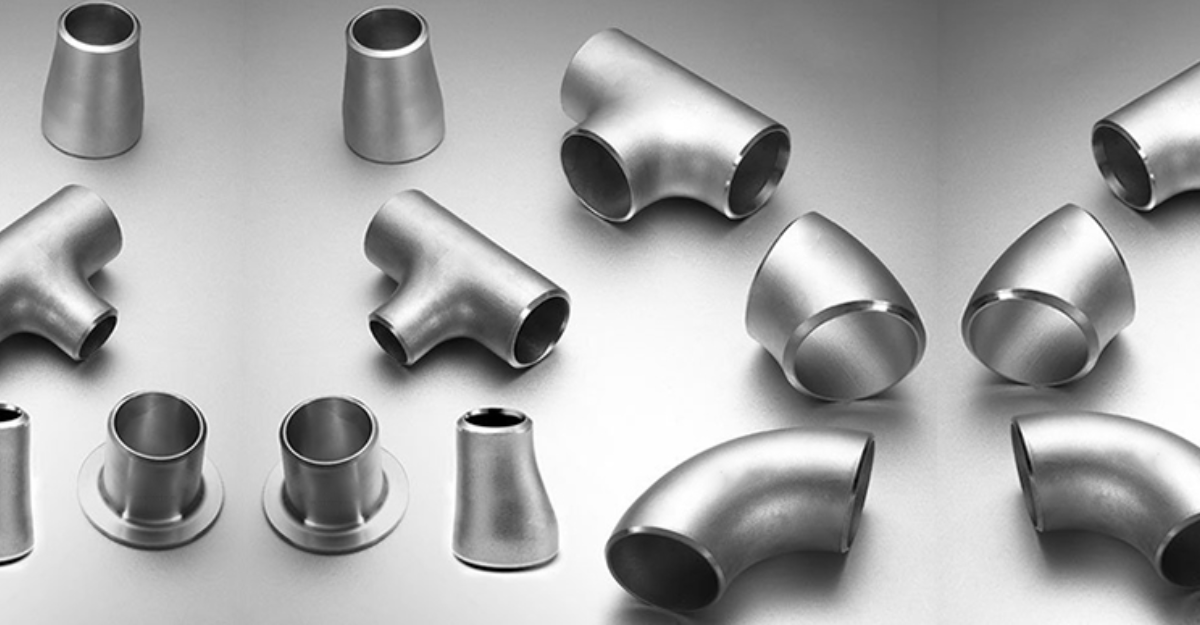

We manufacture and supply the highest quality of Seamless, Welded/Elbow and bends In varying degrees 90°, 60°, 45°, 30°, etc and radius R= 1D and 1.5D for Elbows and R= 3D, 5D, 6D etc for Bends , Equal and Un-equal Tees, Concentric and Eccentric Reducers, Multiple Radius Bends, Caps, Lateral, Stub Ends in Carbon Steel, Low Temperature Carbon Steel, Alloy Steel, and Stainless Steel in various Sizes & Thicknesses as per Product Specifications ASTM A-234/A420/A860/A403/IS-1239/IS-3589, MSS-SP-75 with Dimensions as per ASME B16.9, BS:1640, DIN2605, MSS-SP-43 and Customer drawings.
Butt weld pipe fittings are ideal multiple connection of pipes and to prevent fluid leakage. Butt Weld Pipe Fittings are used in connecting and creating highly reliable and complex pipe-work systems essential to the petrochemical industry whereby they are welded into the system using circumferential butt welds. They are designed and manufactured to exacting standards to provide the perfect combination of reliability and good flow characteristics.
Product Range
| Product | Type | Size Range | SCH / Thickness |
|---|---|---|---|
| Elbow | 1D & 1.5D (SR/LR) 90° & 45° | 1/2” to 24” | Schedule 5S, 10S, 20S, 40S, 80S for SS fittings and Schedule 10, 20, 30, STD, 40, 60, XS, 80, 100, 120, 140, 160, XXS for CS & AS fittings Thickness up to 60mm |
| Return Bend | 1D & 1.5D (SR/LR) 180° | 1/2” to 10” | |
| Tee | Equal & Unequal | 1/2” to 24” | |
| Reducer | Concentric & Eccentric | 1/2” to 24” | |
| Stub End | Long & Short Pattern | 1/2” to 24” | |
| Cap | End Cap & Dish Ends | 1/2” to 60” | |
| Long Radius Bend | 3D, 5D up to 10D | 1/2” to 24” |
| Product | Type | Size Range | SCH / Thickness |
|---|---|---|---|
| Elbow | 1D & 1.5D (SR/LR) 90° & 45° | 8” to 52” | Same as above (SS: 5S–80S, CS/AS: 10–XXS) |
| Tee | Equal & Unequal | 8” to 48” | |
| Reducer | Concentric & Eccentric | 8” to 48” | |
| Stub End | Long & Short Pattern | 8” to 48” | |
| Fabricated Fittings | Miter Bend, Y & Lateral Tee | 8” to 100” |
| Material | Manufacturing Standard and Grades |
|---|---|
| Stainless Steel | ASTM A403 GR. WP 304, 304L, 304H, 310, 316, 316L, 316Ti, 317L, 321, 321H, 347, 904L & NACE |
| Carbon Steel | ASTM A234 GR. WPB, WPBW, WPC, WPCW & NACE |
| High Strength Carbon Steel | ASTM A860/MSS-SP-75 GR. WPHY 46, WPHY 52, WPHY 56, WPHY 60, WPHY 65, WPHY 70, WPHY 80 |
| Low Temperature Carbon Steel | ASTM A420 GR. WPL3 & WPL6 |
| Alloy Steel | ASTM A234 GR. WP1, WP5, WP9, WP11, WP12, WP22 & WP91 |
| Duplex Steel | ASTM A815, UNS S31803, S32205, S32760, S32750 |
| Special Ferrous & Non-Ferrous | Nickel, Inconel, Monel & Hastelloy |
| Dimensions | ASME B16.9, B16.25, B36.10, B36.19, MSS-SP-43, MSS-SP-75 |
