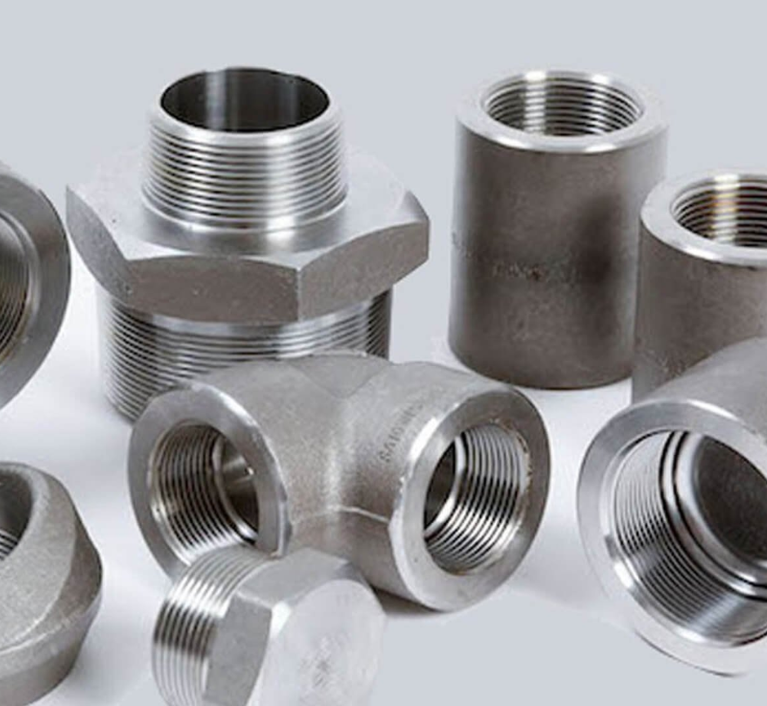

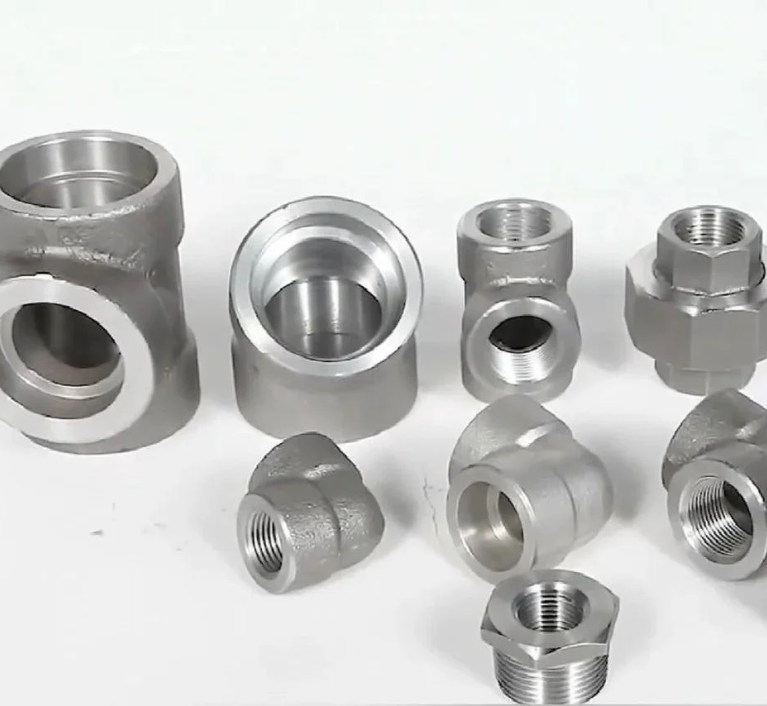

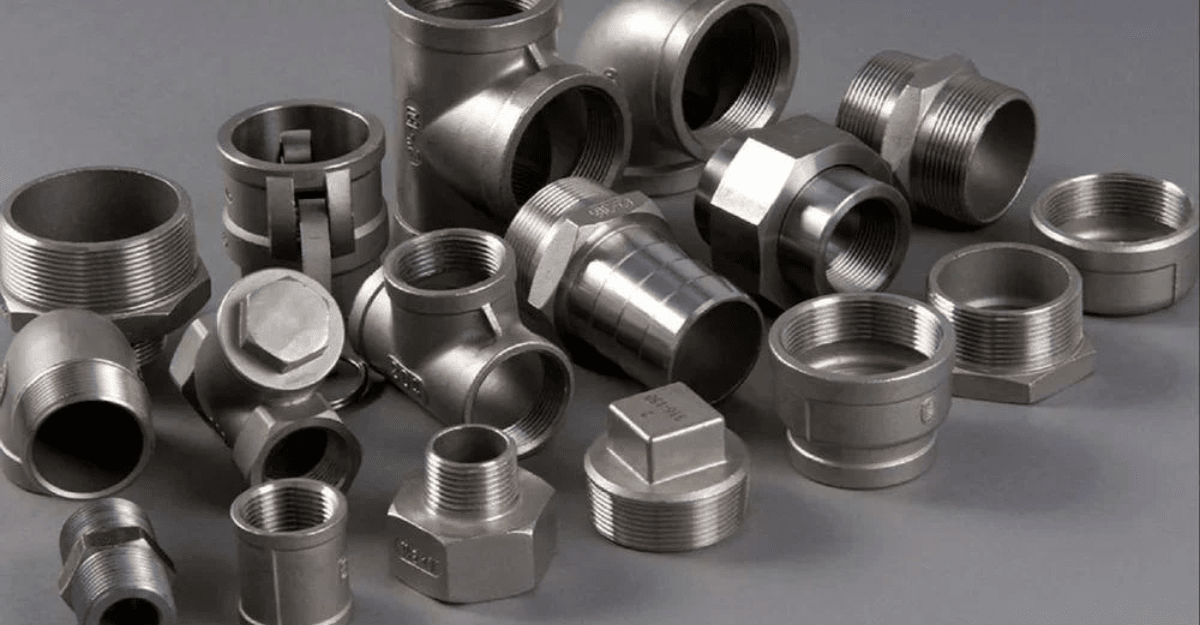

Forged Fittings
We supply Forged Pipe Fittings to the specification of the piping Industry, including Elbows, Tees, Crosses, Couplings, Caps, Unions, Plugs, Bushes, Nipples, Swages and Outlets.(Socketweld and Threaded)
Product Range
Forged Fittings
| Product | Type | Size Range | Class/ Rating/ SCH |
|---|---|---|---|
| Elbow, Equal & Unequal Tee & Cross, Straight & Reducing Full Coupling, half Coupling, End Cap, Plug, Bull Plug, Boss & Bushing | Socket weld & Screwed Fittings | 1/8" to 4" | #3000 , #6000 & #9000 |
| Union, Hex Nipple & Reducing Insert | Socket weld & Screwed Fittings | 1/8” to 4” | |
| Concentric & Eccentric Swage Nipple & Barrel Nipple | Plain,Screwed & Bevel Ends | 1/8” to 4” | SCH 5S, 10S, 20S, 40S & 80S for SS and SCH STD, S40, S80, S160, XXS for CS & AS Fittings |
| Welding Outlets Weldolet, Sockolet, Threadolet, Nipolet, Elbowlet & Laterolet | Socket weld,Screwed & Bevel Ends | 1/8" to 20" | #3000 , #6000 & #9000 & SCH 5S, 10S, 20S, 40S & 80S for SS and SCH STD, S40, S80, S160, XXS for CS & AS Fittings |
Material & Grades
| Material | Manufacturing Standard and Grades |
|---|---|
| Stainless Steel | ASTM A182 GR. F304, F304L, F304H, F310, F316, F316L, F316H, F317L, F321, F321H, F347, F347H , F904 & NACE |
| Carbon Steel | ASTM A105 & A105N & NACE |
| High Strength Carbon Steel | ASTM A694 Gr. F42, F46, F52, F56, F60, F65, F70, & F80 |
| Low Temperature Carbon Steel | ASTM A350 GR. LF2, LF3, LF6 |
| Alloy Steel | A182 F1, F5, F9, F11, F12, F22, F91 |
| Special Ferrous & Non-Ferrous | Duplex Steel, Nickel, Inconel, Monel & Hastelloy |
| Dimensions | ASME B16.11, BS 3799, MSS SP83, MSS SP79, MSS SP 95,MSS SP 97, Threads NPT, BSP & BSPT |
